Description
The Green Matrix™ GLT V-Bank™ uses advanced media bonding technology that provides a unique, efficient, and affordable approach to VOC and odor removal. The GLT V-Bank™ is available in a wide media types and weights, as well as single- and double-header configurations. These filters fit standard front and side access housings.
Technology
The Green Matrix™ family of products efficiently removes a large array of Volatile Organic Compounds (VOC’s) and odors; thus combating the leading contributor to poor Indoor Air Quality (IAQ). Green Ladder’s proprietary bonded media solutions enable uniform molecular flow, resulting in efficient VOC/odor removal at a low operating cost.

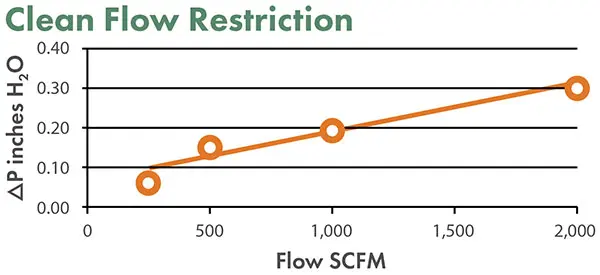

Initial Flow Restriction |
Net Diff. Press. (H2O) at flow rate (SCFM) | |||
|---|---|---|---|---|
| 0.06 | 0.15 | 0.20 | 0.30 | |
| 8 Panel V-Bank 24×24×12 | 250 | 500 | 1,000 | 2,000 |
Specifications
The GLT V-Bank™ is manufactured with high-quality virgin coconut shell carbon with a minimum 60CTC activity (per ASTM D-3467). The filter is available in a variety of options to meet pressure drop and media requirements. Panels are arranged in a V configuration to provide structural integrity and optimize air flow. In order to preserve product quality, each GLT V-Bank™ is individually bagged and boxed. Double header options are available.
Standard Sizes |
Media Weights |
||
| Nominal Size | Actual Size | Standard Carbon | Impregnated Media |
|---|---|---|---|
| 24×24×12 | 23.375×23.375×11.5 | 28 lbs (8 Panel) | 47 lbs (8 Panel) |
| 20×24×12 | 19.375×23.375×11.5 | 21 lbs (8 Panel) | 34 lbs (8 Panel) |
| 12×24×12 | 11.375×23.375×11.5 | 14 lbs (8 Panel) | 24 lbs (8 Panel) |
Benefits
The GLT V-Bank™ offers a number of benefits over conventional loose-fill V-Bank designs.
- No opportunity for media settling and channeling that can lead to VOC and odor bypass
- Virtually dust-free operation, removing the need for post-filtration of carbon fines
- All common media options are available
- Anti-microbial pre- and post-filtration
At Green Ladder, we continuously work to improve our products and reserve the right to make changes in specification and design without notice. Minor variations can occur during the manufacturing process. This data is intended as guidance only.
