Description

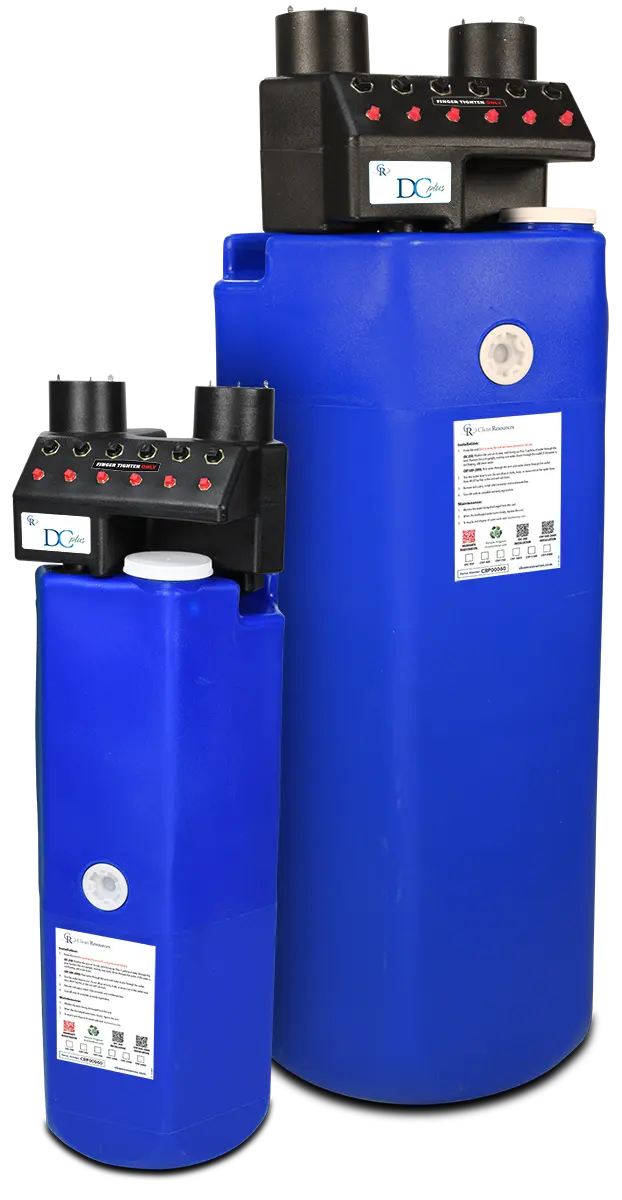

CRP Paks from Green Ladder’s sister company Clean Resources are engineered to minimize maintenance and reduce the cost of dealing with wastewater from compressed air condensate. This advanced molecular filtration system removes all types of lubricants, providing a truly scientific solution to a troublesome problem.

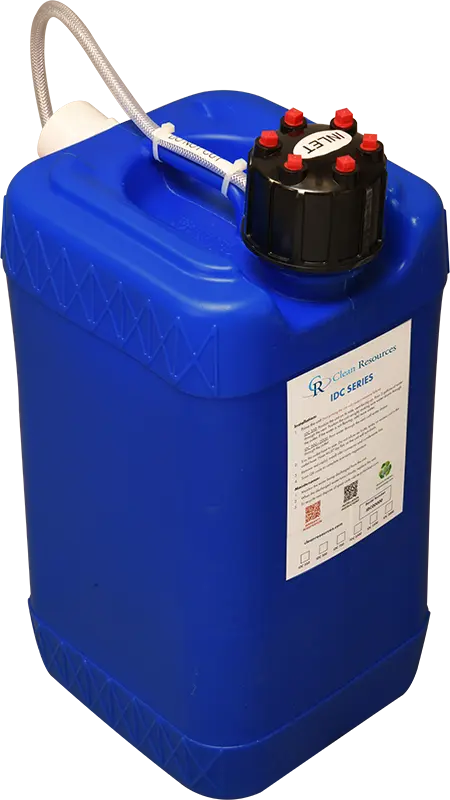

IDC Paks offer the same guaranteed performance in a compact form for small compressed air systems.
Technology
CRP Paks and IDC Paks are filled with a proprietary alumina silicate substrate media that attracts contaminants and repels water molecules. Lubricants are chemically bonded to the media bed, virtually eliminating the possibility of ground water contamination from the spent bed.

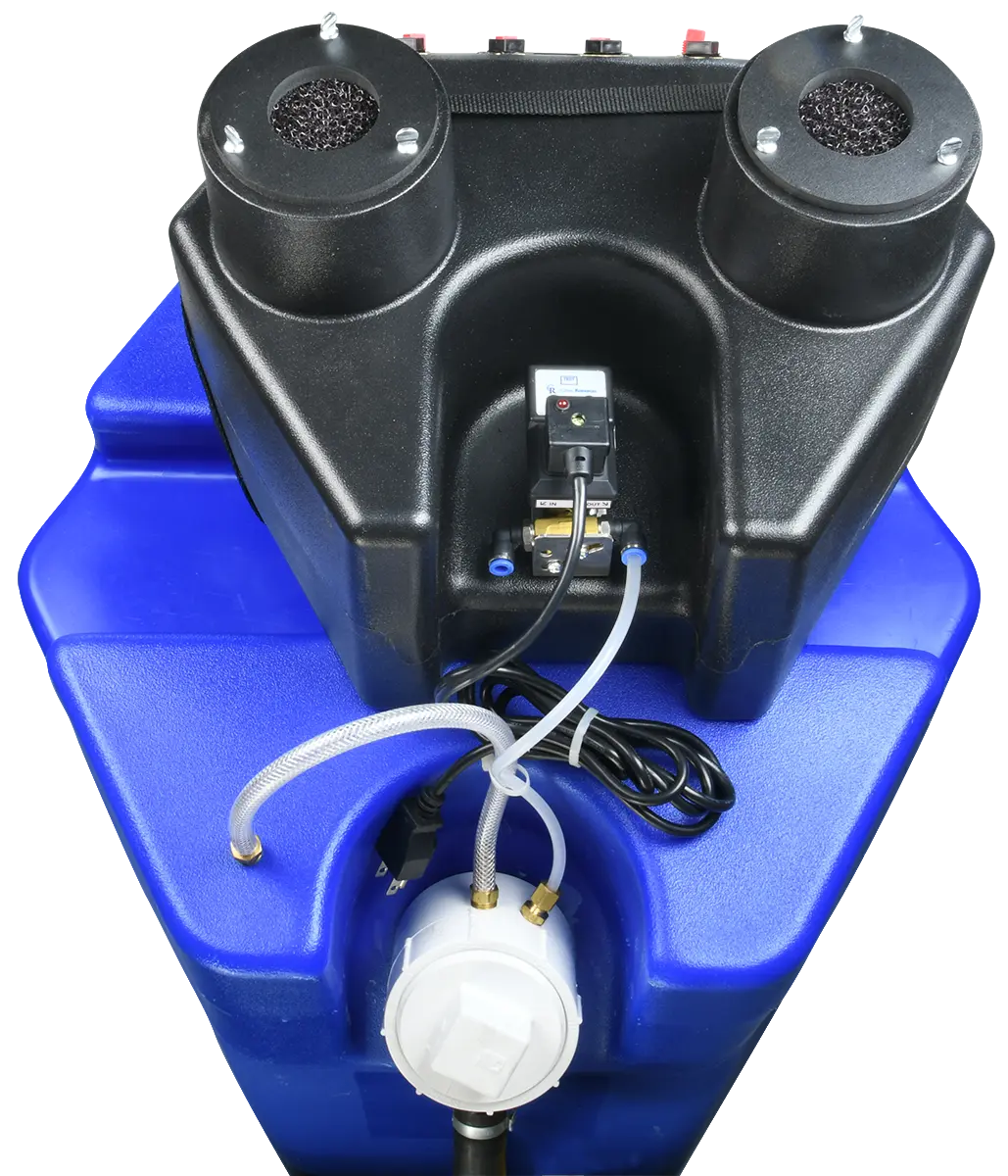

All of our units are self contained, meaning they do not require external pumps, sensors, decompression chambers, or pre-separation filter pads. CRP Series manifolds can be easily removed from spent containers and reattached to new containers with fresh media beds. All registered units qualify for free recycling.
Specifications
| IDC-350 | CRP-500 | CRP-750 | CRP-1000 | CRP-1500 | CRP-2000 | |
|---|---|---|---|---|---|---|
| Inlets | six ¼″ | six ¼″ + six ½″ | six ¼″ + six ½″ | six ¼″ + six ½″ | six ¼″ + six ½″ | six ¼″ + six ½″ |
| Width (in.) | 12 | 16 | 16 | 16 | 22 | 22 |
| Depth (in.) | 14.5 | 15 | 15 | 15 | 20 | 20 |
| Height (in.) | 23 | 48 | 48 | 48 | 57 | 57 |
| Shipping Weight (lbs) | 50 | 110 | 125 | 150 | 310 | 370 |
| Recommended Horsepower (HP) | 15–125 | 30–250 | 40–300 | 50–350 | 125–600 | 150–600 |
| Recommended ACFM | 75–600 | 150–1,250 | 200–1,600 | 250–1,900 | 600–3,000 | 750–3,000 |
| Maximum Temperature (°F) | 125 | 125 | 125 | 125 | 125 | 125 |
Benefits
- Works with emulsified and non-emulsified lubricants
- Compression-fit manifold for precise filtration control
- Timer drain for improved flow of condensate through the media bed
- Antimicrobial sanitization of discharge hose to prevent algae growth
- No maintenance or messy bag change-outs
- Twelve available inlets
- Easy to move and install
- System monitoring services
- Cradle-to-grave warranty
At Green Ladder Technologies, we continuously work to improve our products and reserve the right to make changes in specification and design without notice. Minor variations can occur during the manufacturing process. This data is intended as guidance only.
