Description
The Green Matrix™ family of products efficiently removes a large array of Volatile Organic Compounds (VOC’s) and odors, thus combating the leading contributor to poor Indoor Air Quality (IAQ). Green Ladder’s proprietary bonded carbon media solutions enable uniform molecular flow, resulting in efficient VOC/odor removal at a low operating cost.
Manufactured with Green Ladder’s advanced bonding technologies, Green Matrix™ Disposable panel filters offer an environmentally responsible, effective, and affordable solution for your filtration needs.
Designed to be used in existing housings, Green Matrix™ Disposable panel filters require no system modification. And replacement is easy! Simply slide out the old filter, dispose of it, and insert a new filter. Done!
Typical 1″ Bed Depth Panel
| 24×24×1 | 9.5 lbs standard carbon | 12 lbs impregnated carbon |
|---|---|---|
| All common HVAC panel thicknesses, dimensions, and media types available | ||
| Custom sizes and media blends available up to 6″ bed depths | ||

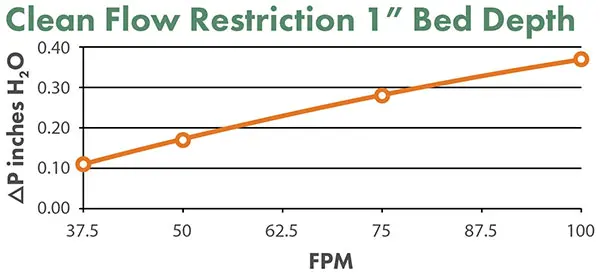

Initial Flow Restriction
| NET Diff. Press. (H2O) at Flow Rate (SCFM) | |||
|---|---|---|---|
| 37.5 | 50 | 75 | 100 |
| .11 | .17 | .28 | .37 |
Conditions: Temperature 71° F, Relative Humidity 50%, Barometric Pressure 731.6 mmHg
Applications
Green Matrix™ Disposable panel filters are the ideal solution for
- HVAC Systems
- Odor Control
- Corrosion Control
- Diesel Fumes
- Manufacturing Processes
- Chemical Processing
- Pulp & Paper
Construction
The Green Matrix™ Disposable panel is manufactured with high quality virgin coconut shell carbon with a minimum 60CTC activity (per ASTM D-3467) and assembled with standard galvanized steel frames. Panels are available in a variety of media options to meet a wide range of application requirements.
In order to preserve product quality, panels are bulk bagged (6 per bag) and boxed.
Benefits
The Green Matrix™ Disposable panel offers a number of benefits over conventional loose-fill designs.
- No opportunity for media settling and channeling that can lead to VOC and odor bypass
- Virtually dust-free operation, removing the need for post-filtration of carbon fines
- All common media options are available
- Custom tailored solutions based on application specifications
- Integrated UL Class 1 anti-microbial pre-filtration
At Green Ladder, we continuously work to improve our products and reserve the right to make changes in specification and design without notice. Minor variations can occur during the manufacturing process. This data is intended as guidance only.
