AGx Fresh-Air 500

Rapid VOC Odor Neutralizer

Green Matrix Flat Panel

Description

AGx Fresh-Air 500 Series VOC and Odor Neutralizers quickly and efficiently remove harmful contaminants from the air, making your indoor environment safer and more pleasant to inhabit. An advanced whisper-quiet fan produces minimal noise, allowing the environment to remain peaceful and your people to remain happy as well as healthy. With multiple Green Matrix™ Bonded Carbon options, you can bet there’s a Fresh-Air 500 unit designed to fit your application.

Proprietary Green Matrix™ bonded carbon media, coupled with high-efficiency particulate and cationic antimicrobial filtration, allows the Fresh-Air 500 to rapidly treat large volumes of air, greatly reducing harmful chemicals, noxious odors, and visible airborne particulate matter in most any residential or commercial setting.*


*Under normal operation conditions, you can expect the unit to adsorb up to 20% of the filter weight in high- and medium-weight organic compounds.

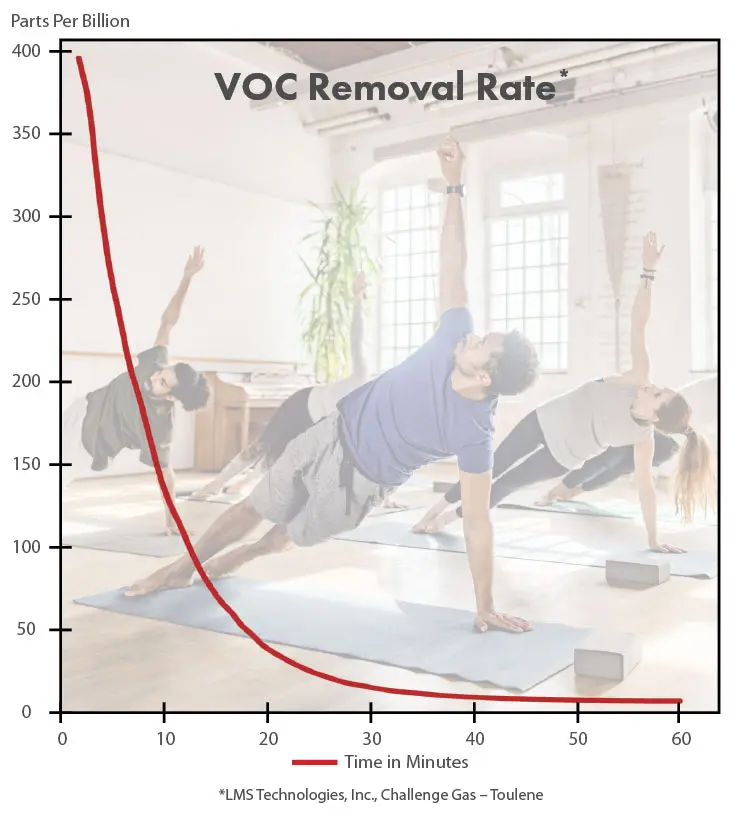

VOC Removal Rate chart

Technology

Originally developed for Cleanroom and high-purity environments, Green Matrix™ bonded carbon filtration technology* provides a dramatic performance improvement over standard air cleaner technology.

Fresh-Air 500 filters contain a massive 25 pounds of Green Matrix™ media! Each 360°, 1.125″-thick filter is calibrated to extend contaminant residence (dwell) time and optimize contaminant removal. Units efficiently remove VOCs and odors while remaining whisper quiet.

Dwell Times
LOW: ~125 CFM with ~.35 sec. dwell time @ 49 dB
MEDIUM: ~300 CFM with ~.13 sec. dwell time @ 51 dB
HIGH: ~400 CFM with ~.11 sec. dwell time @ 53 dB

* Green Matrix™ bonded carbon is engineered to optimize removal efficiencies while eliminating the primary issues associated with common carbon odor filters. ZERO filter media settling, ZERO particulate shedding, and NO eventual filter bypass or channeling, all while containing sufficient carbon mass to ensure extended service life.

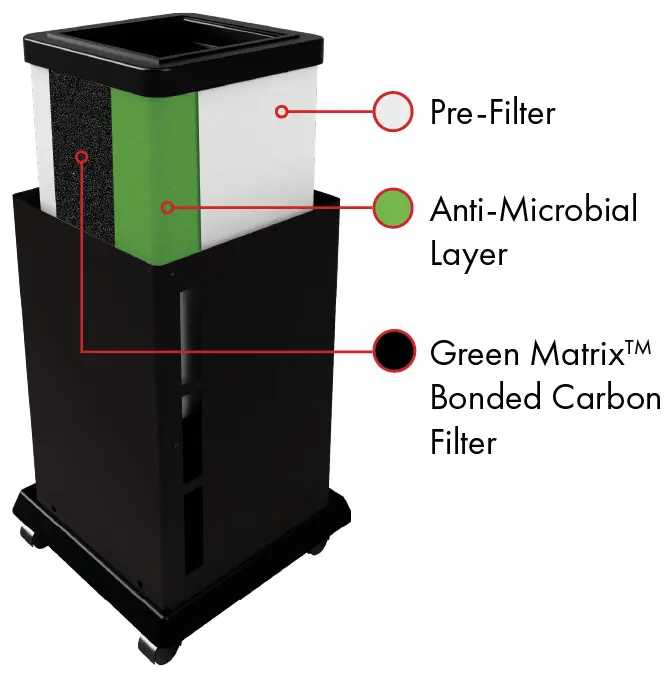

Fresh Air 500 filter layers

Construction

The AGx Fresh-Air 500 uses a multi-layered filtration system to improve air quality and keep people healthy.

  • The replaceable pre-filter wrap captures and removes coarse airborne particulates like mold spores, allergens, and dust.
  • The antimicrobial filtration wrap reduces biological contaminants such as bacteria.
  • The proprietary, high-quality, Green Matrix™ bonded carbon filter removes harmful VOCs, chemical contaminants, and odors. Multiple media blend options are available.

Features

  • Proprietary VOC/odor removal technology
  • Application-specific media options
  • Green Matrix™ Bonded Carbon (25 lbs)
  • Replaceable MERV 13 pre-filter wrap
  • Ultra-quiet high-efficiency fan*
  • Variable speed operation
  • Safety interlock cut-off switch
  • Simple touch pad control
  • Antimicrobial filtration
* Fan and motor CSA and NTRL (UL) approved

Specifications

Four carbon core options means there’s a unit formulated to target most any odor-causing contaminant. Whether you need to reduce food odors, chemical smells, vehicle exhaust, or allergens, we’ve got the perfect unit for you!

Each Fresh-Air 500 model can quietly remove VOCs in a 20′ × 40′ room, or 6,400 ft3, in 30 minutes or less.*
* High quantities of VOCs may require multiple filtration cycles to be reduced to optimal levels

Dimensions 18.5″ W × 18.5″ D × 37″ H
Unit Weight 58 lbs
3-speed Fan Whisper quiet on low/medium/high
Noise Level dBA <49 on low*
Power Usage <5 Amps at 110 VAC
* Austin Labs



Green Ladder Technologies™, LLC, is a filtration industry leader with over 50 years of experience developing high-performance molecular filtration products for commercial and industrial markets.
